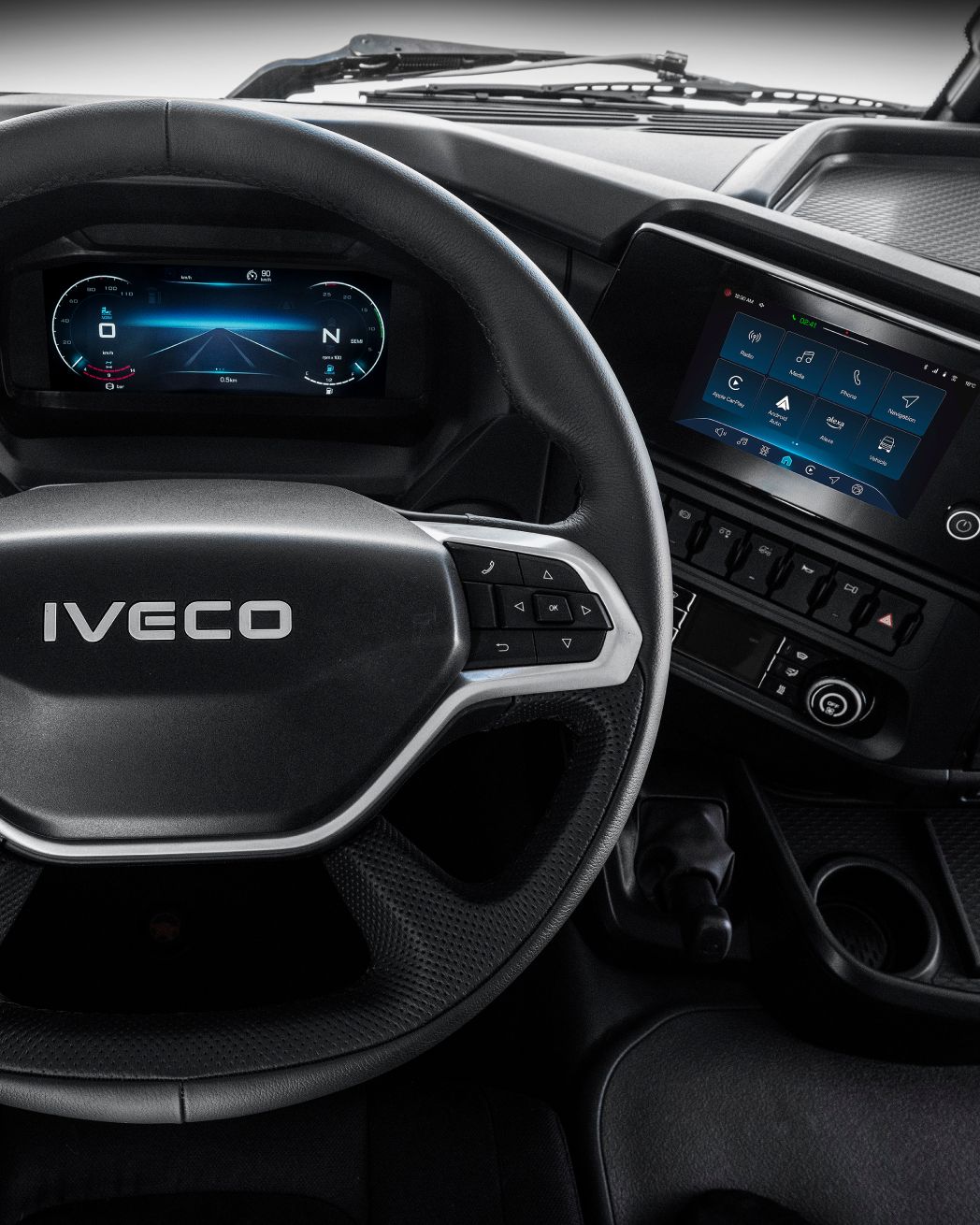

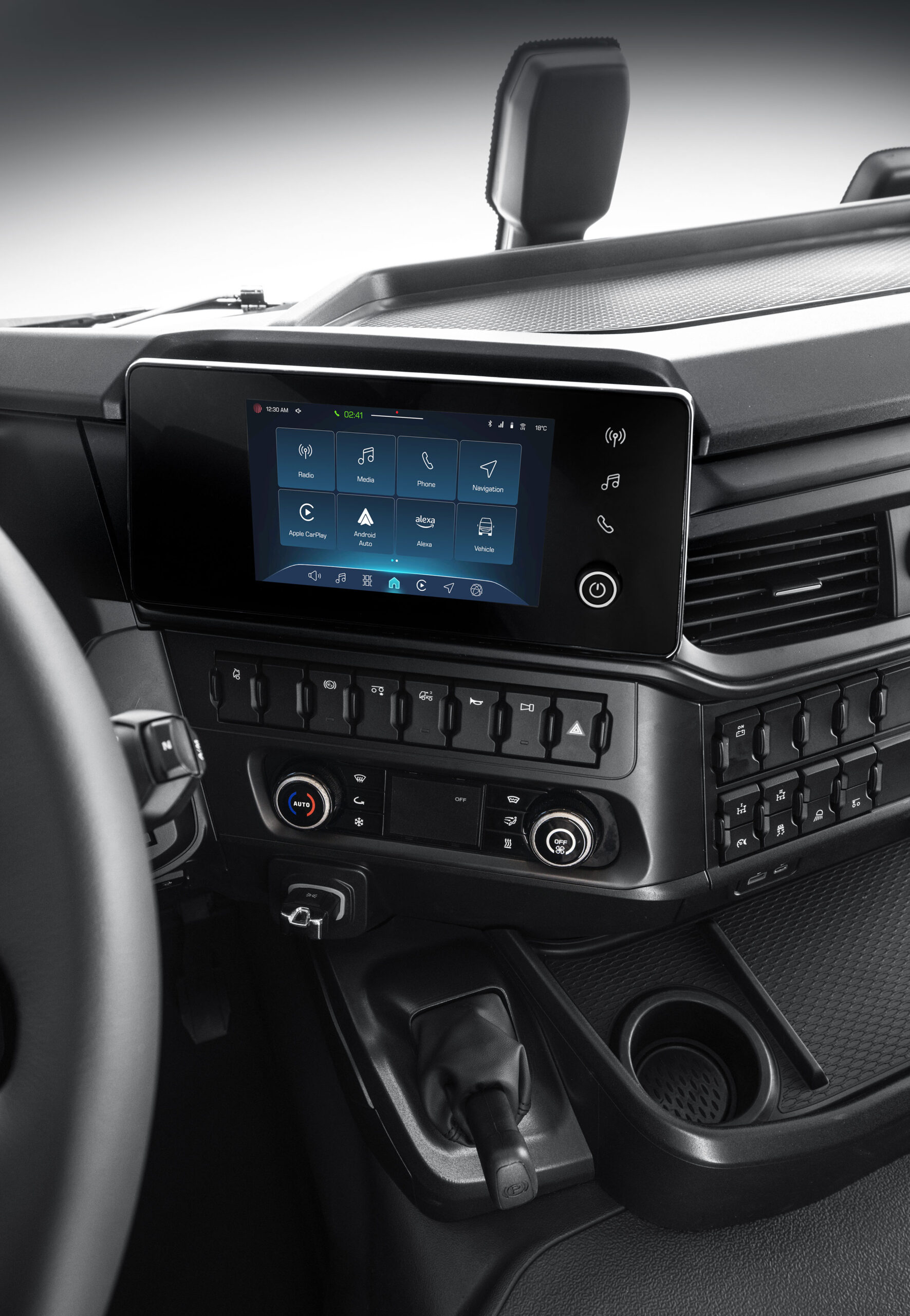

Premium driving comfort
The entire driving area has been created to provide the ultimate driving environment with outstanding ergonomics and controls layout, more space and excellent visibility. Every single detail has been carefully studied to meet the driver’s expectations on the road.

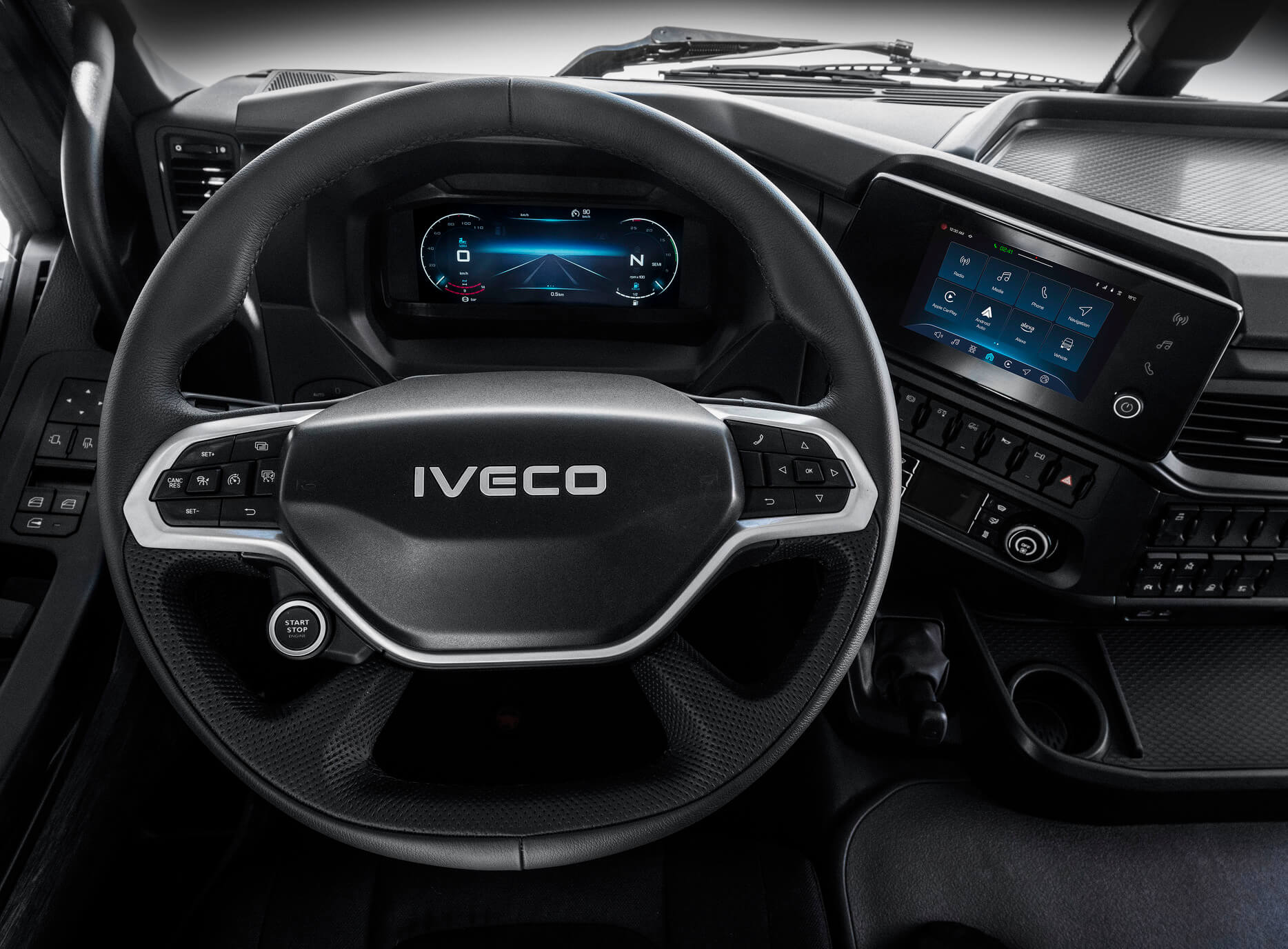

Outstanding ergonomics
Customise your seats with leather or fabric upholstery and enjoy the luxurious comfort of the cushions. Choose the soft touch or leather steering wheel, both available in the classic shape or with the distinctive flat base.
HI-TRACTION – WHAT IS IT?
The HI-TRACTION system is automatically activated to provide additional hydraulic front-wheel traction when needed to overcome the skidding of the rear axle on slippery surfaces. It delivers all the grip, manoeuvrability and driving safety advantages of all-wheel drive.
HI-TRACTION – HOW IT WORKS
The Boost mode is activated at every standing start (0 to 3 km/h) to improve traction and reduce wear and tear of the clutch.
UP TO 12,500 NM TORQUE AVAILABLE ON THE FRONT AXLE. WITH BOOST MODE YOU HAVE ALL THE TRACTION YOU NEED EVEN ON A STANDING START. |
|
FRONT AXLE MAX. TORQUE |
up to 12.500 Nm |
SYSTEM WEIGHT |
approx. 400 kg |
ACTIVATION RANGE | 0-45 km/h |
GEAR CHANGE | AUTOMATED |
POWER TAKE-OFF | ENGINE PTO |
Mixer

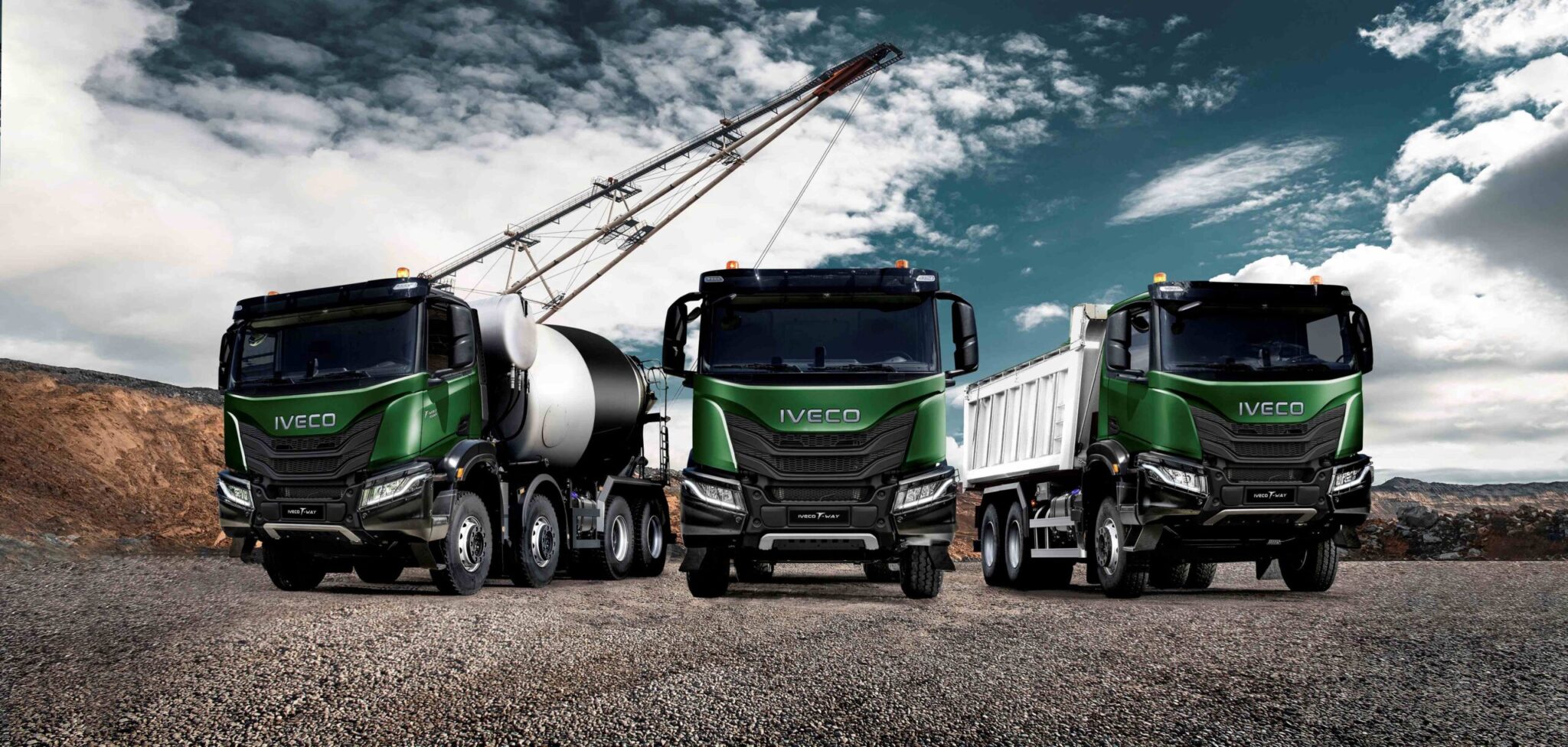

The IVECO T-WAY is built to carry massive payloads on all terrains – it can mount concrete mixers of high capacity
up to 12 m3 for a 40-tonne GVW.

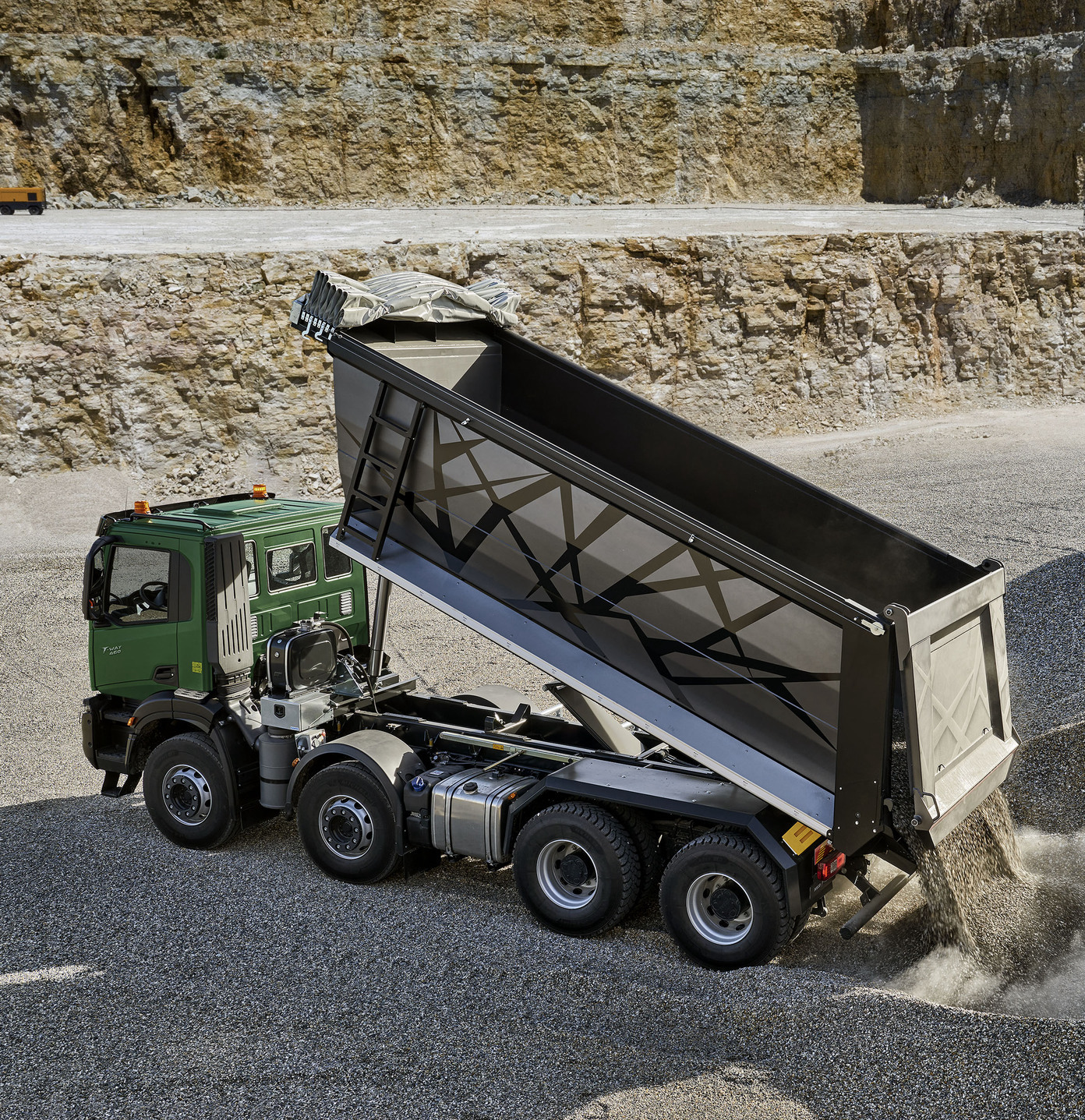

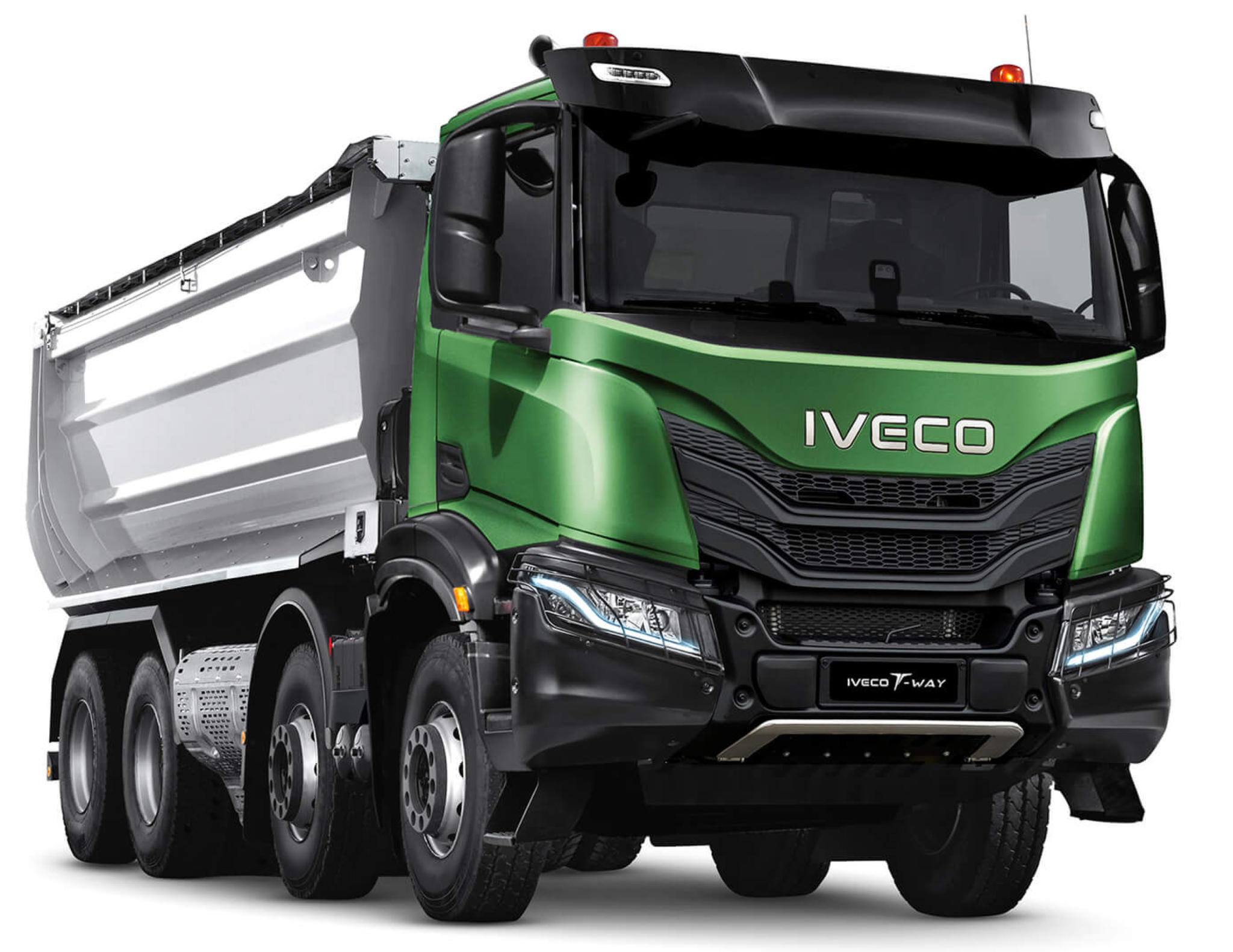

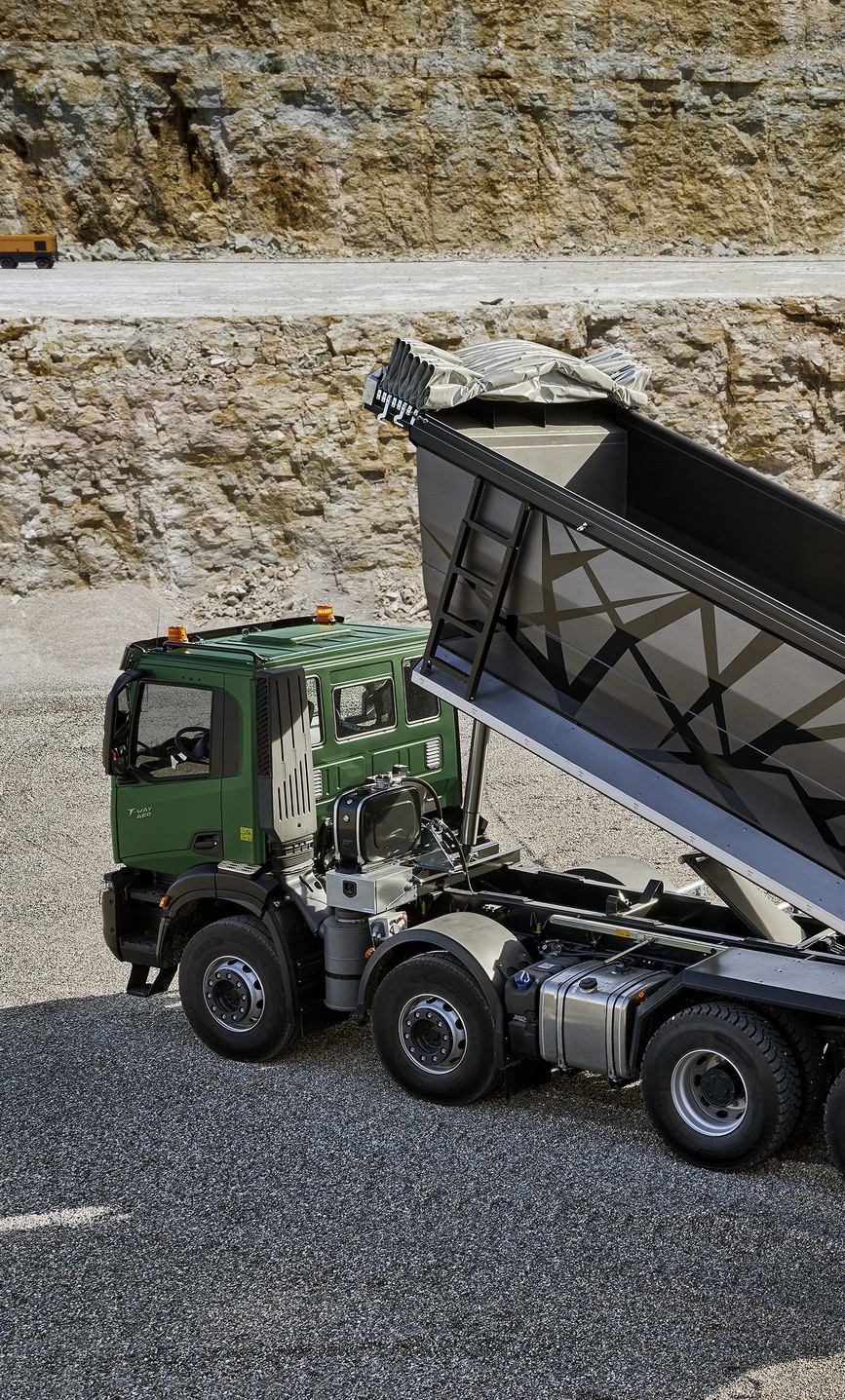

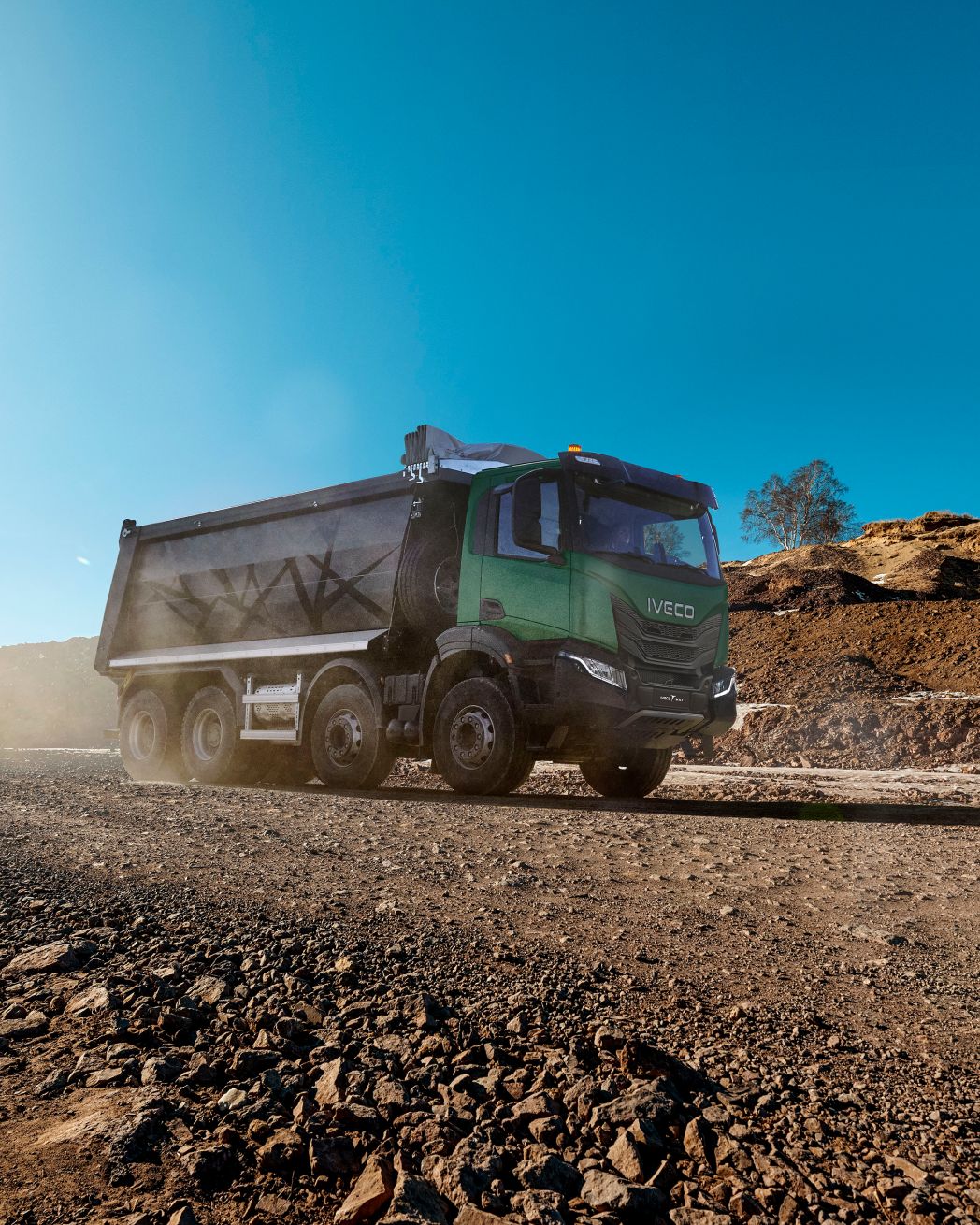

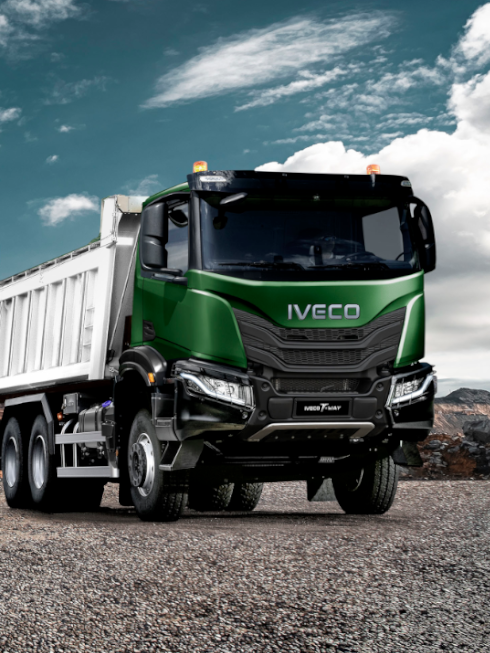

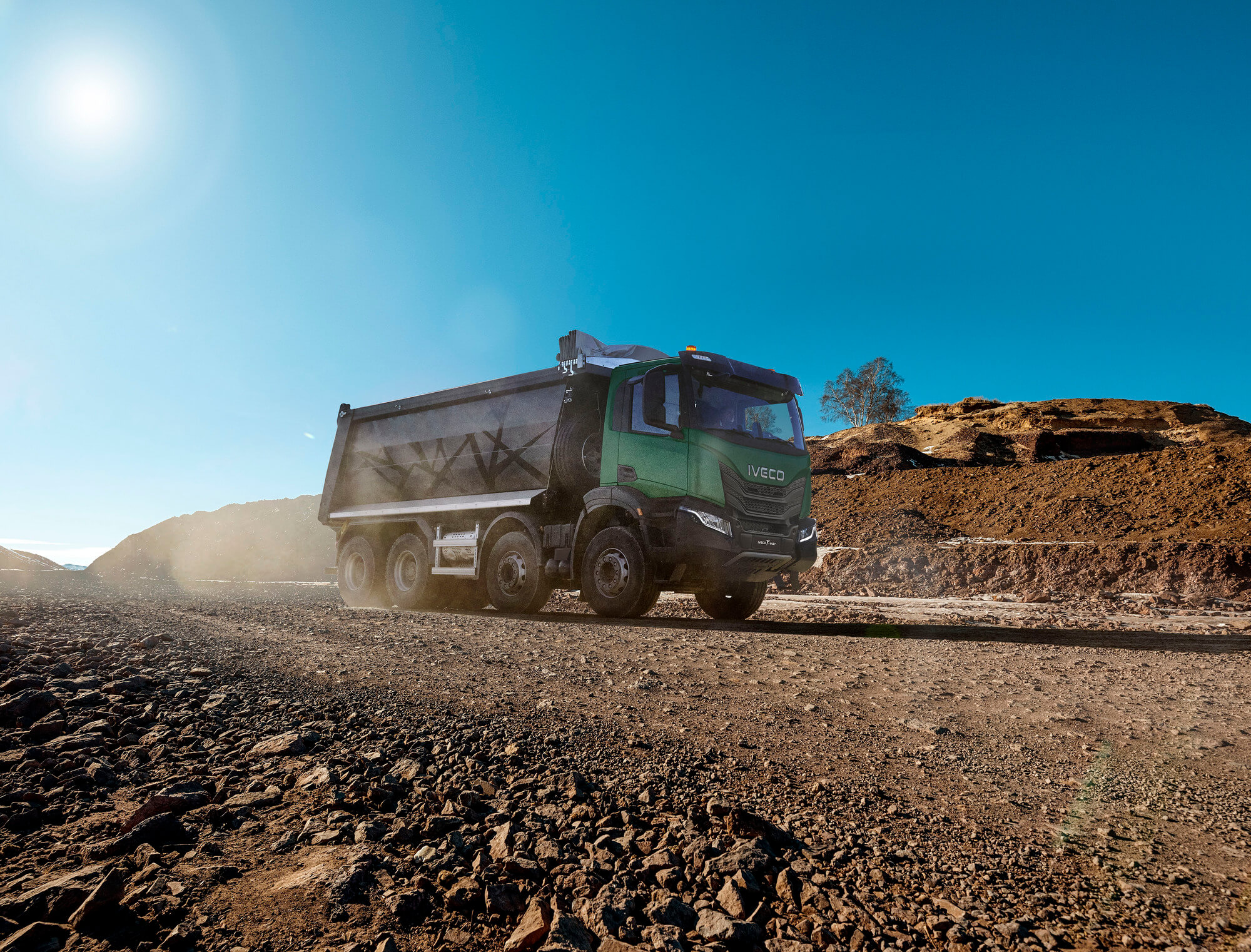

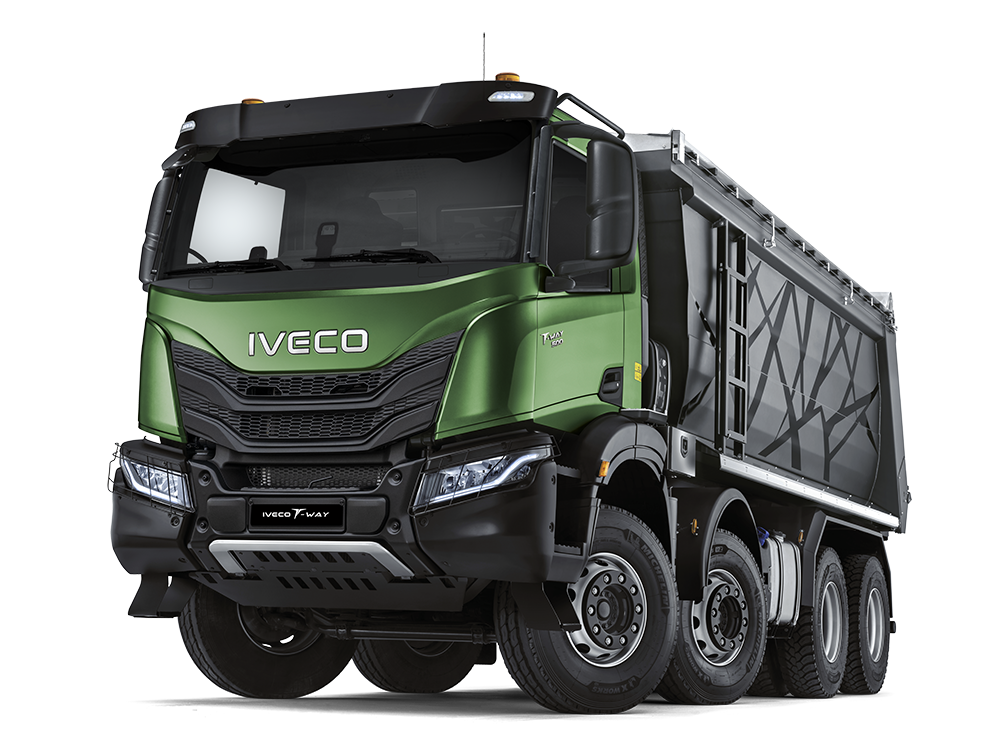

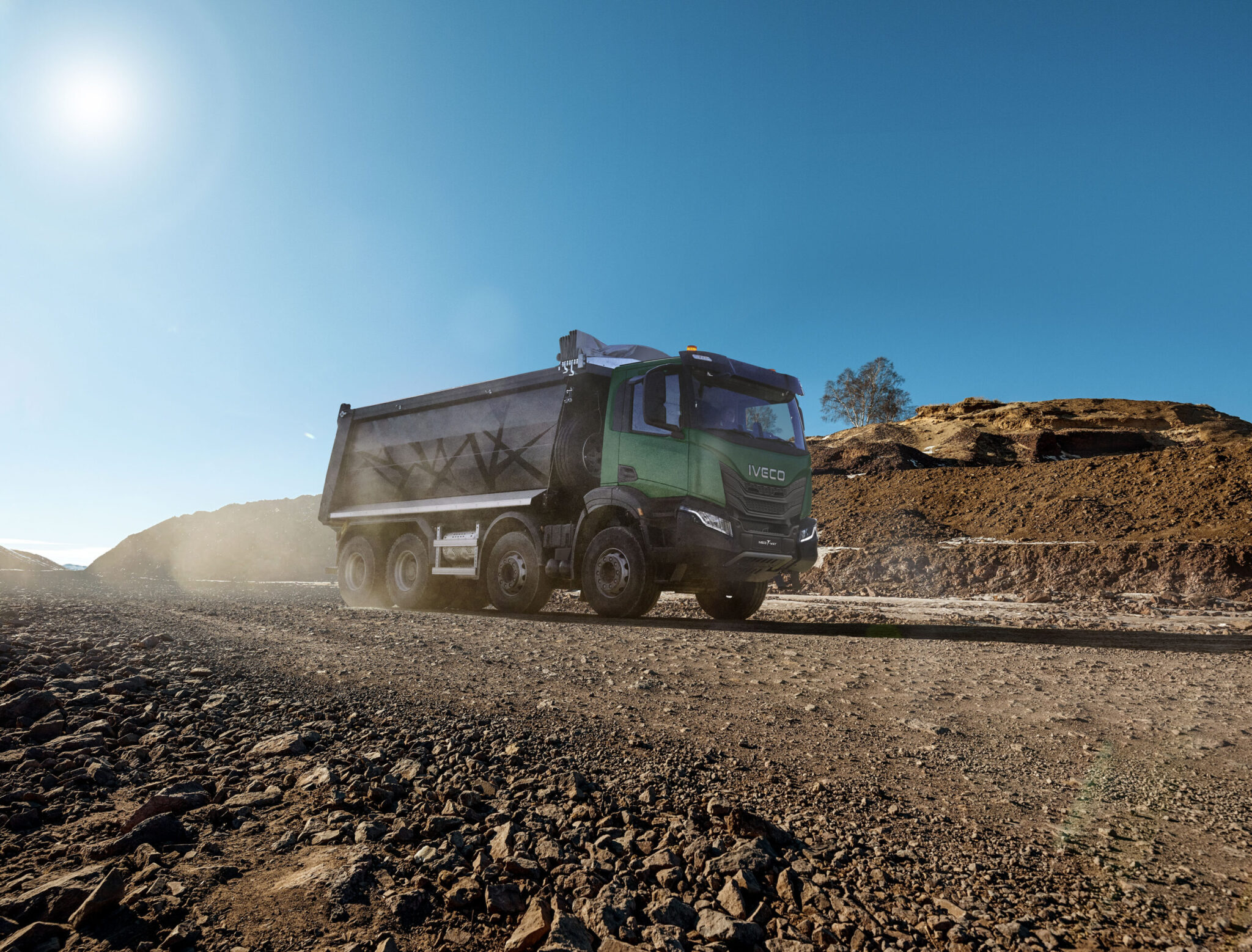

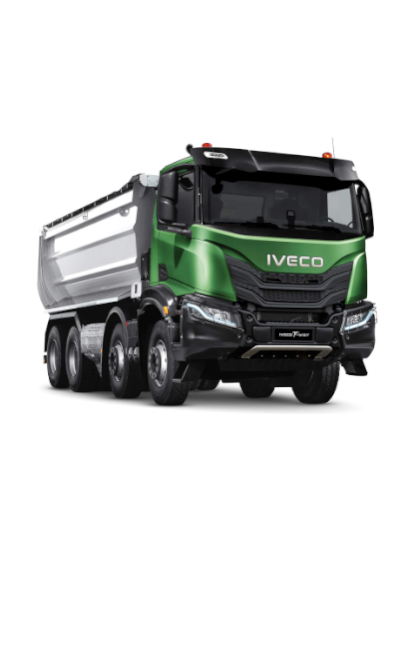

Tipper
The IVECO T-WAY will drive wherever you need it to go, carrying big payloads in all conditions – from un-tarmacked roads to extreme off-road terrains, in all weathers and in the harshest environments.
Crane & platform
The IVECO T-WAY can be fitted with every type of crane, from flatbed to platform cranes. The robustness and modular concept of the vehicle enables us to fit cranes at the back of the cab, in a central position or at the rear of the vehicle with no compromise on stability.
Gully cleanerThe IVECO T-WAY is optimised for the easy installation of a gully cleaner body and to provide all the features you need. High performance is essential in this mission, and the new clutch independent sandwich PTO designed to unleash up to 2300 Nm delivers the huge torque required.
TIMBER
The IVECO T-WAY delivers the high power you need and offers the ideal features to load, transport and unload timber with ease. It will transport your logs comfortably in forests and woods, on the roads, and all the way to your destination: our powerful engines, the robust chassis, big payload capacity and hydrostatic drive are all features designed for this multi-faceted mission. With HI-TRACTION you can rely on all the traction you need to carry a bigger payload. It is lighter than all-wheel-drive and gives you all the grip you need on dirt roads – even after the vehicle has been unloaded. It is also available with the new Creep working function that completely disconnects the driveline, enabling you to move the vehicle with hydrostatic power only.

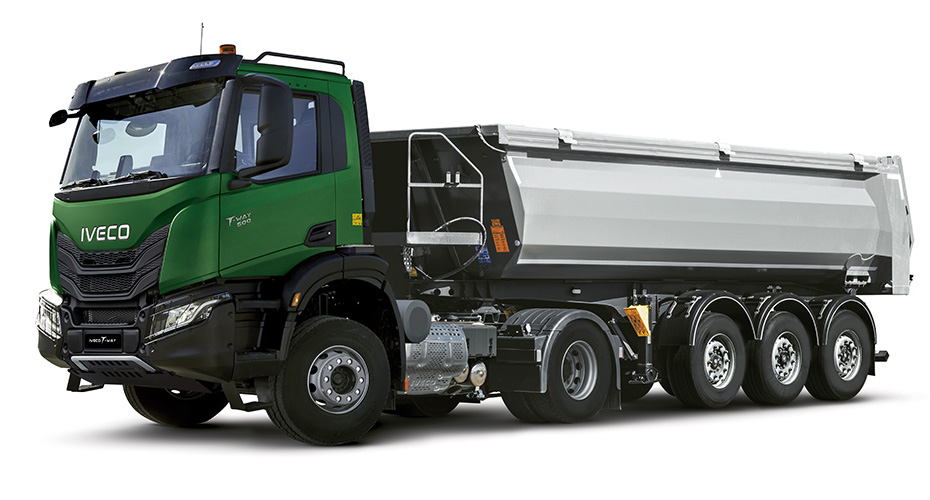

TIPPER SEMITRAILER
IVECO T-WAY tractors in 6×4 configuration combine the best fuel efficiency with the ultimate safety technologies of the new cab. These features give you the confidence to tackle with ease the most difficult conditions of worksites while ensuring high productivity, safety and delivering excellent Total Cost of Ownership.
CONCRETE (PUMPS, MIXER, MIXER PUMPS)
With the IVECO T-WAY you can meet every construction site requirement for concrete – from a simple concrete mixer to pumps and mixer pumps. The introduction of a complete range of PTOs in various positions on the vehicle enables us to meet the needs of every application with torque above 2000 Nm.
PUBLIC UTILITIES
The vast choice of configurations and extreme versatility mean that the IVECO T-WAY range is able to meet the requirements of a wide variety of applications – from road resurfacing to snow clearing, from waste collection to road services.

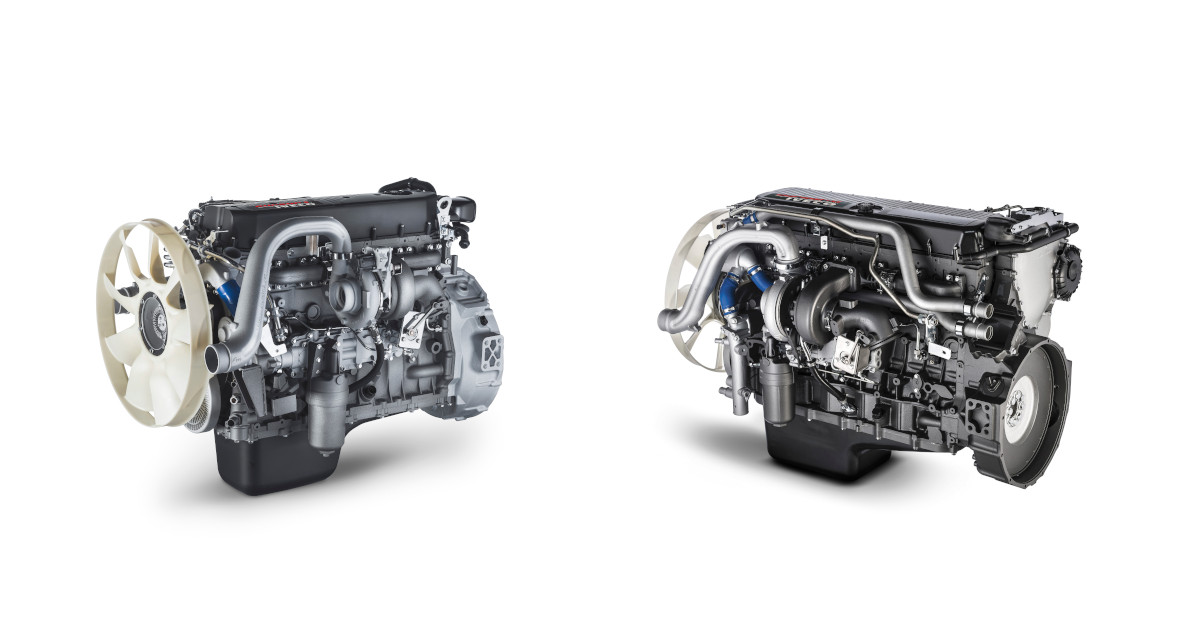

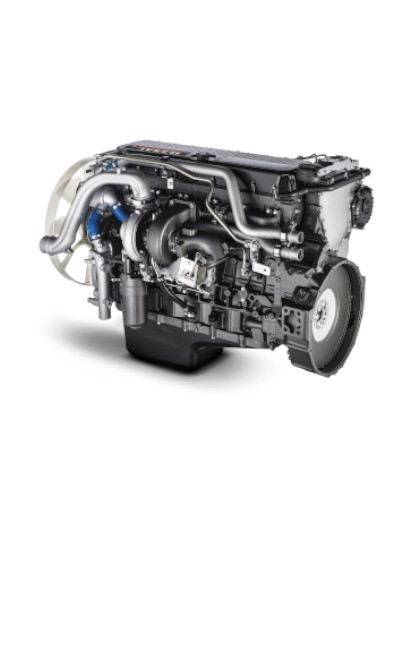

ENGINES
The IVECO T-WAY offers a wide choice of Euro VI diesel engines to suit all applications. The engines, with 2 displacements and power ratings ranging from 340 to 510 hp, deliver class leading power.
ENGINE | CURSOR 9 | CURSOR 13 | |||
DISPLACEMENT (Litres) | 8.7 | 12.9 | |||
POWER hp at rpm | 340 @1655–200 | 360 @1530–2200 | 410@ 1370-1900 | 450@ 1440-1900 | 510 @1560-1900 |
TORQUE Nm at rpm | 1400 @1100–655 | 1650 @1200-1530 | 2100 @900-1370 | 2200 @970-1440 | 2300 @900-1560 |
AFTER TREATMENT SYSTEM | HI-SCR | HI-SCR | |||
EMISSION STANDARD | Euro VI | Euro VI |
NOTA
(1) Approximate measurements, may change based on suspensions assembly variables.
(2) Upper bed as option.

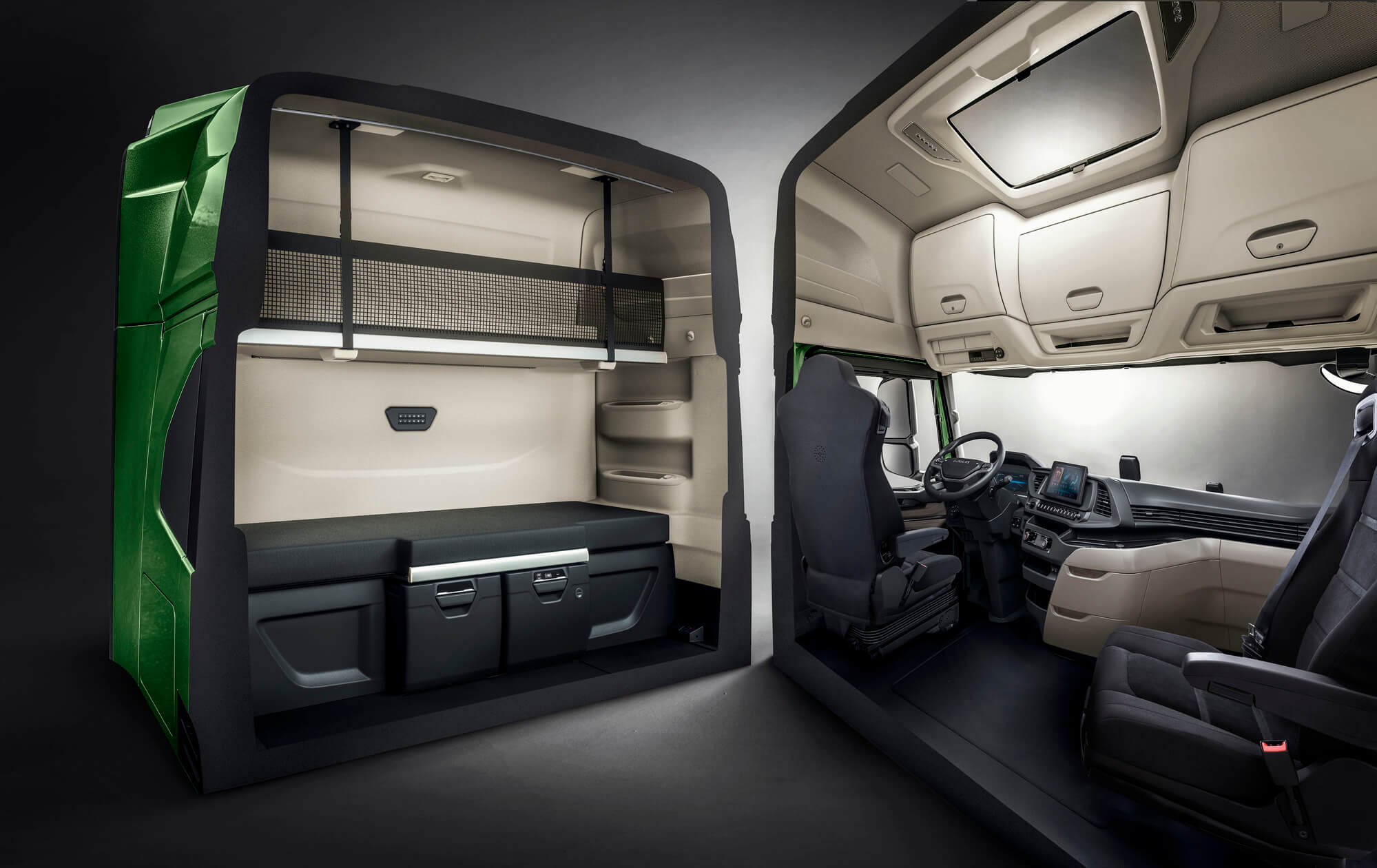

AT Cab
Lower bunk length 1950mm, width 540mm,
Upper bunk length 1850mm, width 680mm.
